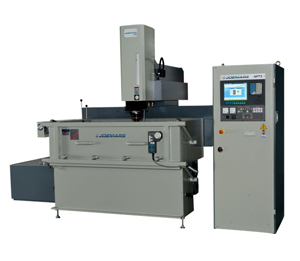

CNC Series JMNC1140+NP75+D1140
- Specs
- Accessories
- Features
- Controls
- Cut Samples
- Video
- Inquiry
MACHINE UNIT
| Item | Model | JMNC1140 |
|---|---|---|
| Work table size | mm | 900 x 650 |
| X travel | mm | 1150 |
| Y travel | mm | 400 |
| Z travel | mm | 350 |
| Ram platen to work table | mm | 255 ~ 605 |
| Max. electrode weight | kgs | 150 |
| Max. workpiece weight | kgs | 2000 |
| Work tank ( W * D * H ) | mm | 1500 x 900 x 430 |
| Weight of machine unit | kgs | 3400 |
| Outside dimensions ( W * D * H ) | mm | 2165 x 2495 x 2335 |
DIELECTRIC TANK
| Item | Model | D1140 |
|---|---|---|
| Capacity | L | 1200 |
| Pump | HP | 0.85 HP * 2 pcs |
| Net weight | kgs | 300 |
| Filter method | Paper * 4 pcs | |
| Outside dimensions ( W * D * H ) | mm | 1350 x 2000 x 1100 |
GENERATOR (CNC)
| Item | Model | NP75 |
|---|---|---|
| Max. Machining Current | A | 75 |
| Total Power Input | KVA | 7 |
| Max. Metal Removal Rate | mm³/min | 610 |
| Electrode Wear Ratio | % | 0.20 |
| Best Surface Roughness | μmRa | 0.20 |
| Net Weight | kgs | 330 |
| Outside Dimensions ( W x D x H ) | mm | 680 x 1070 x 1820 |
* All specification and design are subject to change without notices.
STANDARD ACCESSORIES
| Paper filters 1 set |
| Tool box 1 pcs |
| Flushing nozzle 1 set |
| Drill chuck 1 pcs |
| Clamping kit 1 set |
| Electrode holder 1 pcs |
| Halogen work lamp 1 pcs |
| Leveling pads 1 set |
OPTIONAL ACCESSORIES
| Auto fire extinguisher |
| Permanent magnetic table |
| Dielectric cooler |
| Auto electrode changer |
| C axis |
| Spare PCB set |
FEATURES
| Industrial grade PC based CNC controller |
| 12.1” TFT LCD color panel |
| Dialogue programming or GM code programming |
| Background editing |
| User Macro function |
| Multi language support |
| Machining path display |
| MPG positioning and discharging alignment |
| Multi-holes macro programming: Linear/Circular/Array/Arbitrary Multi-holes |
| Multi-conditions macro programming for finish machining |
| 1000 machining condition tables with 1000 conditions in each table |
| 17 kinds of Loran & Orbit function |
| LWF sparking circuit able to control the peak current rising slope, reduce the corner wear |
| Tracking mode OFF-TIME control circuit to prevent Arcing |
| All PC boards are sectioned in modular box design, reduce maintenance cost |
