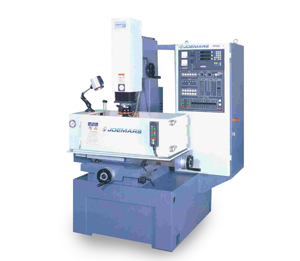

ZNC Series JM32Z
Developed by a group of top engineers and technicians with rich on ground and theoretical experience in the field of EDM, JM32Z renders superb engineering supremacy and unmatched mechanical features to outstand others.
- Specs
- Accessories
- Features
- Controls
- Cut Samples
- Video
- Inquiry
MACHINE UNIT & DIELETRIC TANK UNIT
| ITEM | UNIT | JM32Z |
|---|---|---|
| Work table size | mm | 600 × 300 |
| X travel | mm | 300 |
| Y travel | mm | 200 |
| Z travel | mm | 200 |
| W travel | mm | 200 |
| Ram platen to work table | mm | 190 ~ 590 |
| Max. electrode weight | kgs | 60 |
| Max. workpiece weight | kgs | 550 |
| Work tank ( W × D × H ) | mm | 830 × 500 × 300 |
| Weight of machine unit | kgs | 1230 |
| Machine Outside dimensions ( W × D × H ) | mm | 1670 × 1750 × 2175 |
GENERATOR
| ITEM | UNIT | JM32Z |
|---|---|---|
| Max. Machining Current | A | 50 |
| Total Power Input | KVA | 4.5 |
| Max. Metal Removal Rate | mm³ / min | 390 |
| Electrode Wear Ratio | µm Ra | 0.25 |
| Best Surface Roughness | % | 0.20 |
* All specification and design are subject to change without notices.
STANDARD ACCESSORIES
| Paper filters 1 set |
| Tool box 1 pc |
| Flushing nozzle 1 set |
| Drill chuck 1 pc |
| Clamping kit 1 set |
| Electrode holder 1 pc |
| Halogen machine work lamp 1 pc |
| Leveling pads 1 set |
| Digital readout 1 set |
| Up cutting set |
OPTIONAL ACCESSORIES
| Auto fire extinguisher |
| CNC orbit-cut system ( For AZDR / NZ series ) |
| Permanent magnetic table |
| Dielectric cooler |
| Spare PCB set |
THE JOEMARS NEW FUZZY LOGIC CONTROL SYSTEM CONCEPT
| JOEMARS New Fuzzy Logic Control |
| Sensor that exceeds a skilled operator / Optimizes machining conditions ( Off time, sparking gap, Servo sens., Flushing hight, Working time ) |
NEW Z NC PROGRAMMABLE FOR AUTO MACHINING
| From Rough To Fine Finishing |
| Total of 50 programs, each program can do a single step, or a maximum of 10 steps machining ( option ) and each step includes 12 kinds of machining parameters. By using the JOEMARS Fuzzy Logic Control System, the operator can get a total of 9600 sets of machining parameters which can also be modified at any time during sparking without affecting the stored parameters. |
MACHINING SPEED
| 10% - 45% faster than conventional mode. |
LOWEST ELECTRODE WEAR.
SURFACE FINISHING :
| A much higher quality machining surface that requires a minimum amount of polishing reduced by 25%. |
SHORTEST MACHINING PARAMETERS SETTING TIME
| Only input:(1) Machining materials, (2) Electrode size, (2) Electrode wear & (4) Peak current. Then the best machining parameters will be auto set to start machining from rough to final surface finishing automatically. |
NEW “4A” EQUIPMENT : ANTI-ARCING AUTO ADJUSTMENT
| The JOEMARS Fuzzy Logic Control System will auto monitor & adjust the machining parameters in the event of a poor machining condition. Once the condition has been cleared it will auto return to the pre-set machining parameters to achieve the best performance. |
FASTER MACHINING SPEED OF ULTRA-THIN RIBS.
